3.3V Single-Piece 16Mb

Nonvolatile SRAM

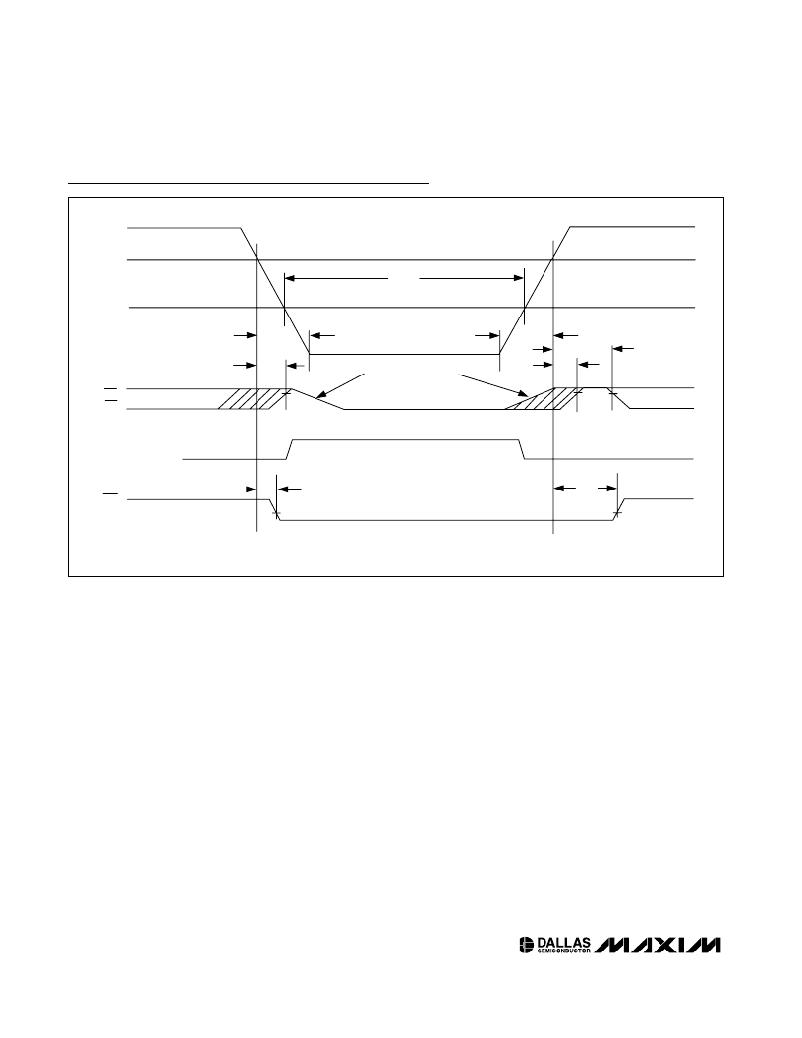

Power-Down/Power-Up Condition

V CC

V TP

t DR

~ 2.5V

t F

t R

t REC

CE,

WE

BACKUP CURRENT

SUPPLIED FROM

LITHIUM BATTERY

RST

t PD

V OL

t RPD

SLEWS WITH

V CC

t PU

t RPU

V OL

V IH

(SEE NOTES 1, 7.)

Note 1: RST is an open-drain output and cannot source current. An external pullup resistor should be connected to this pin to real-

ize a logic-high level.

Note 2: These parameters are sampled with a 5pF load and are not 100% tested.

Note 3: t WP is specified as the logical AND of CE and WE . t WP is measured from the latter of CE or WE going low to the earlier of

CE or WE going high.

Note 4: t WR1 and t DH1 are measured from WE going high.

Note 5: t WR2 and t DH2 are measured from CE going high.

Note 6: t DS is measured from the earlier of CE or WE going high.

Note 7: In a power-down condition, the voltage on any pin cannot exceed the voltage on V CC .

Note 8: The expected t DR is defined as accumulative time in the absence of V CC starting from the time power is first applied by the

user. Minimum expected data-retention time is based on a maximum of two +230 ° C convection solder reflow exposures,

followed by a fully charged cell. Full charge occurs with the initial application of V CC for a minimum of 96 hours. This para-

meter is assured by component selection, process control, and design. It is not measured directly in production testing.

Note 9: WE is high for a read cycle.

Note 10: OE = V IH or V IL . If OE = V IH during write cycle, the output buffers remain in a high-impedance state.

Note 11: If the CE low transition occurs simultaneously with or later than the WE low transition, the output buffers remain in a high-

impedance state during this period.

Note 12: If the CE high transition occurs prior to or simultaneously with the WE high transition, the output buffers remain in a high-

impedance state during this period.

Note 13: If WE is low or the WE low transition occurs prior to or simultaneously with the CE low transition, the output buffers remain

in a high-impedance state during this period.

Note 14: DS2070W BGA modules are recognized by Underwriters Laboratory (UL) under file E99151.
